Weight Loss Product Series
Gastric Calibration Tube
Standard (Type I) gastric calibration tubes are available in 32, 34, 36, 38 and 40 Fr sizes with a 1200 mm tube length. Review the brochure and sizing guide, then send your required model and quantity.
Product Overview
The Standard Gastric Calibration Tube (Type I) is a disposable bariatric surgery bougie and gastric sizing tube for sleeve gastrectomy, gastric bypass and gastrectomy. The 1200 mm medical silicone tube supports gastric pouch calibration, stomach sizing, intraoperative positioning, decompression, aspiration, irrigation and methylene blue leak testing.
Features
Medical-grade silicone: flexible, biocompatible, and safe for tissue contact
Precise scales and radiopaque lines for accurate intraoperative positioning
Central channel with auxiliary holes for gastric decompression, irrigation, aspiration, and infusion
Conical connector compatible with injection devices for intraoperative irrigation and methylene blue leak testing
Length 1200mm, 5 sizes (32–40 Fr) for sleeve gastrectomy, gastric bypass and gastrectomy procedures
Structure & Components
1
Structure Composition
Tube body + inner cone connector + silicone tip + universal connector + check valve + radiopaque line. EO sterilized, single use.
Indications & Contraindications
Indications
- Indicated for sleeve gastrectomy, gastric bypass, gastrectomy and other gastric procedures requiring stomach sizing or gastric pouch calibration. Provides visual and tactile delineation with gastric decompression, irrigation, drainage and content removal capability.
Specifications
| Model | Size (Fr) | OD (mm) | ID (mm) | Length (mm) | Color |
|---|---|---|---|---|---|
| SY01-04 | 32 Fr | 10.70 | 6.7 | 1200 | Blue |
| SY01-00 | 34 Fr | 11.30 | 7.1 | 1200 | Blue |
| SY01-01 | 36 Fr | 12.00 | 8.0 | 1200 | Blue |
| SY01-02 | 38 Fr | 12.40 | 8.4 | 1200 | Blue |
| SY01-03 | 40 Fr | 13.20 | 8.2 | 1200 | Blue |
Packaging & Details

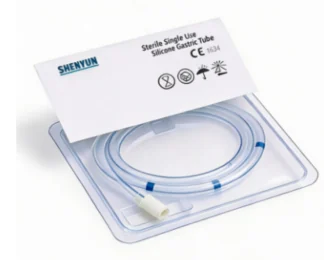

Packaging

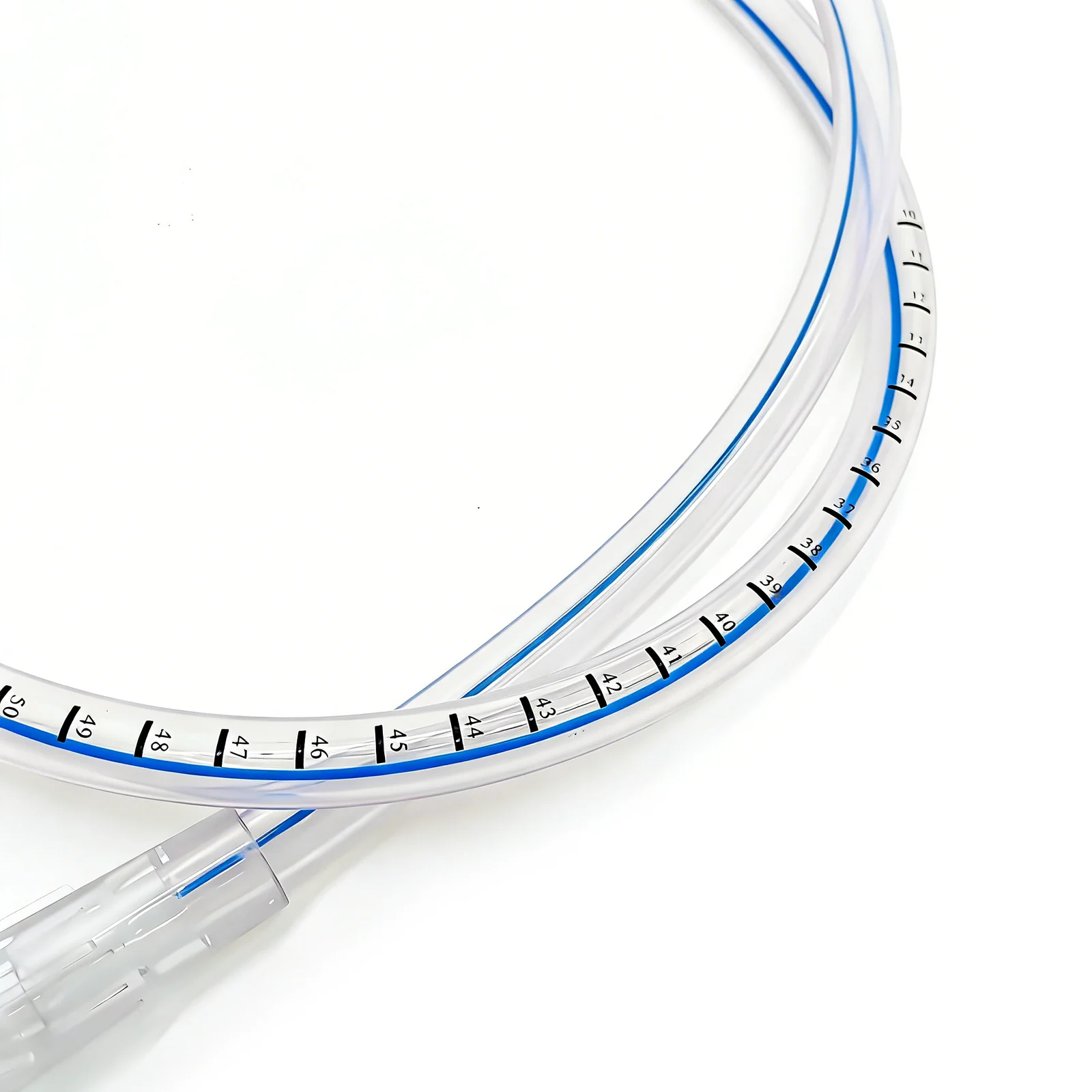

Type I Detail

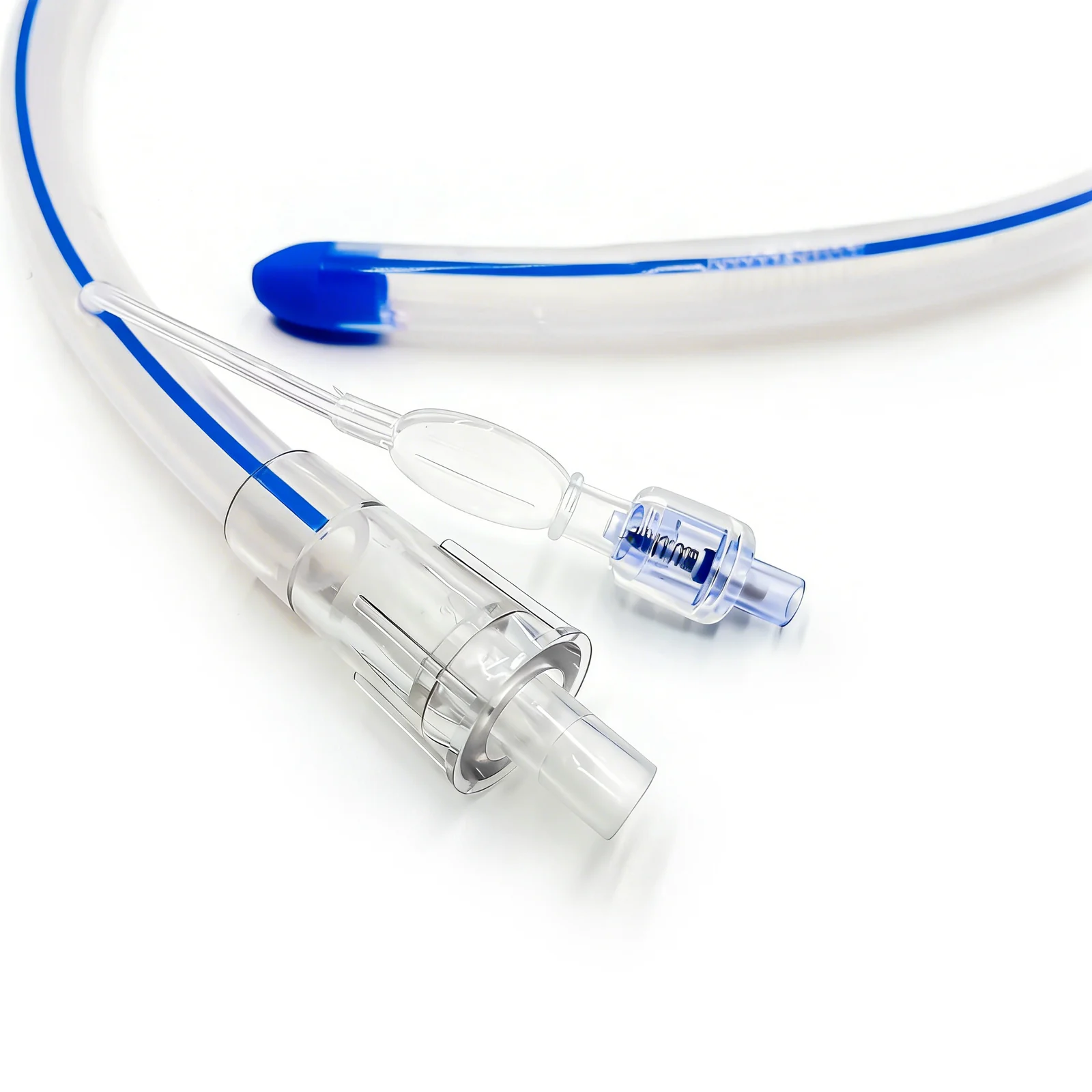

Type II Detail
FAQ
Interested in Gastric Calibration Tube?
Our professional team is ready to provide product consultation, technical support, and partnership discussions.
